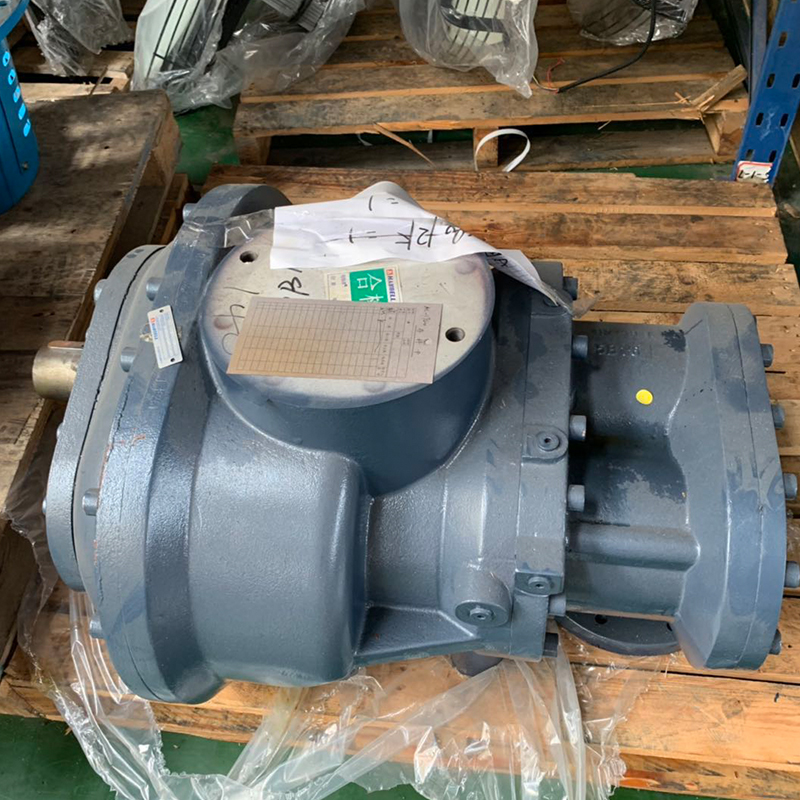

45kW螺杆压缩机机头 汉钟AA-480R主机
技术参数
| 型号 | 功率 (kW) | 转速 (rpm) | 流量 (m3/min) | 轴功率 (kW) | 比功率 (kW/m3/min) | 服务系数 | 外形尺寸(mm) | 重量(kg) | | AA-077(Belt) | 7.5 | 3420 | 1 | 7.3 | 7.4 | 0.97 | 320*179*150 | 43 | | AA-077 (Belt) | 11 | 5200 | 1.5 | 11 | 7.2 | 1 | 320*179*150 | 43 | | AA-130(Belt) | 15 | 3420 | 2 | 14.6 | 7.2 | 0.97 | 445*210*170 | 50 | | AA-210 | 18.5 | 2950 | 2.9 | 19.4 | 6.7 | 1.05 | 410*261*207 | 70 | | AA-240 | 22 | 2950 | 3.5 | 22.7 | 6.4 | 1.03 | 512*261*207 | 73 | | AA-420 | 37 | 2950 | 6.2 | 38.2 | 6.1 | 1.03 | 689*357*280 | 155 | | AA-480R | 45 | 2950 | 7.1 | 47.5 | 6.7 | 1.05 | 476*373*299 | 160 | | AA-600R | 55 | 2950 | 9.1 | 57.6 | 6.3 | 1.05 | 674*353*299 | 180 | | AA-780R | 75 | 2950 | 11.9 | 73.3 | 6.1 | 0.98 | 746*434*350 | 305 | | AA-1030R | 90 | 2950 | 15.7 | 104.5 | 6.6 | 1.08 | 717*402*350 | 275 | | AA-1200R | 110 | 2950 | 19.4 | 115.5 | 5.9 | 1.05 | 863*575*412 | 300 | | AA-1320 | 132 | 2950 | 21.4 | 139.5 | 6.5 | 1.06 | 863*610*442 | 490 | | AA-1560 | 160 | 2950 | 23.9 | 151.6 | 6.3 | 0.95 | 928*630*453 | 558 | | AA-1900R | 185 | 2950 | 29.8 | 186.6 | 6.2 | 1.01 | 870*677*485 | 680 |
|
